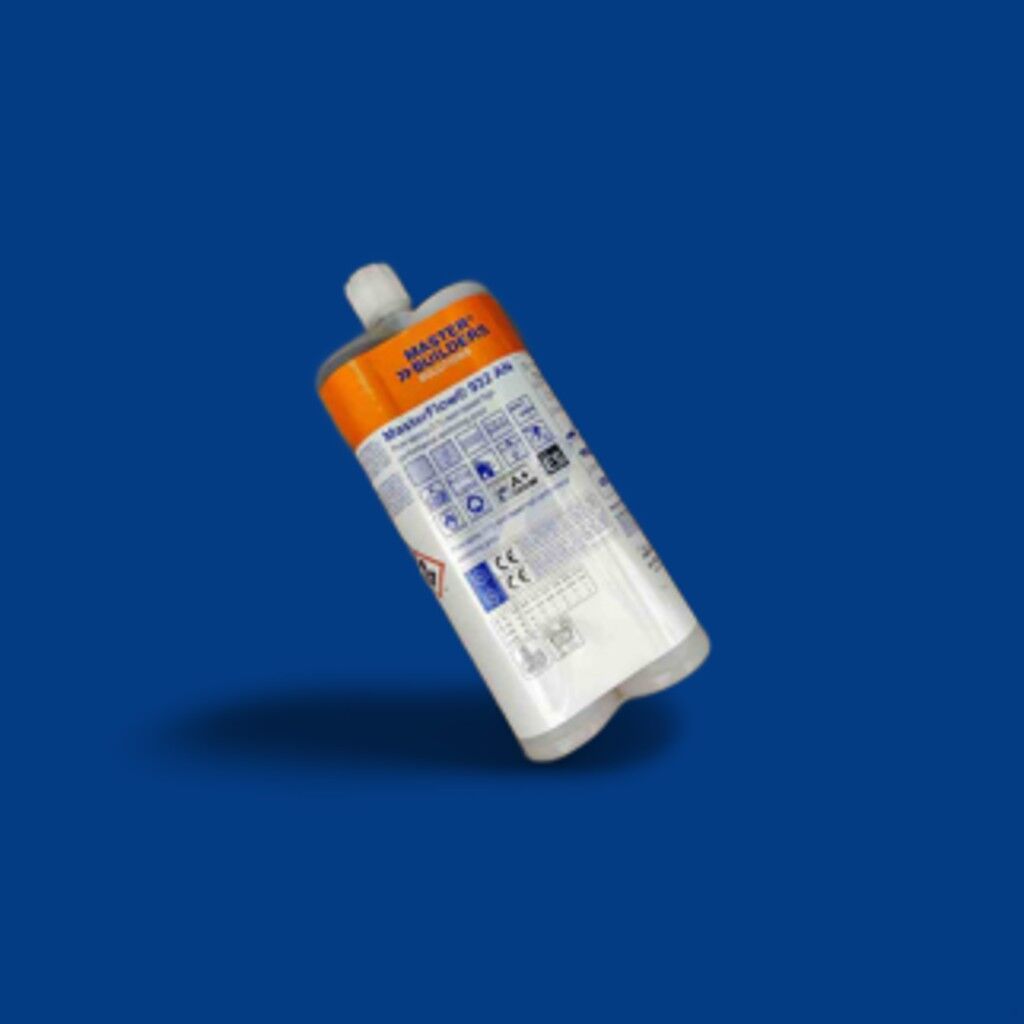

MFlow 932AN Epoxy Grouting System | MCT CHEMICALS | MASTER BUILDER SOLUTIONS

USES
MFlow 932AN is ideal for applications requiring high-strength bonding and durable grouting, including:

• Fixing and grouting of heavy machinery and equipment
• Anchoring of starter bars, bolts, and fasteners
• Under-grouting of base plates and machine foundations
• Precision bedding for turbines, compressors, and pumps
• Fixing of rail tracks, crane rails, and other structural components
• Grouting for bridge bearings, mechanical joints, and heavy-duty infrastructure
• Suitable for both static and dynamic load-bearing applications in demanding conditions

FEATURES

• High Early Strength: Fast strength development for early-load applications.
• Non-Shrink: Prevents volume loss and ensures long-term stability.
• Moisture Resistant: Ideal for use in wet or damp conditions, providing reliable performance.
• Impact and Vibration Resistant: Perfect for machinery and equipment subject to constant movement.
• Corrosion and Chemical Resistance: Resists harsh environmental conditions, ensuring longevity.
• High Bond Strength: Strong adhesion to steel, concrete, and other materials.
• Low Thermal Expansion: Minimizes the risk of cracking due to temperature changes.
• Ready-to-Mix: Comes in pre-measured components for ease of use and consistent results.

PRODUCT INFORMATION

• Composition: Epoxy resin with high-performance aggregates and fillers
• Packaging: Supplied in 30 kg kits (Part A + Part B + Part C)
• Shelf Life: 12 months from the production date when stored in proper conditions
• Storage Conditions: Store in a dry, cool area between +5°C and +30°C, away from sunlight and moisture. Keep containers sealed.
• Appearance and Color: Grey or as specified
• Density: Approximately 1.92 kg/l (mixed at +25°C)

TECHNICAL INFORMATION

• Compressive Strength:
  • ≥ 85 N/mm² (7 days at +25°C) (ASTM C579, BS 6319)
• Flexural Strength:
  • ≥ 30 N/mm² (7 days at +25°C) (ASTM C580)
• Tensile Strength:
  • ≥ 12 N/mm² (7 days at +25°C) (BS 6319)
• Coefficient of Thermal Expansion:
  • ~4.5 x 10⁻⁵/°C (ASTM C531)
• Effective Bearing Area:
  • ≥ 85% (ASTM C1339)
• Working Temperature Range:
  • Applied at temperatures between +5°C and +40°C
• Pot Life:
  • At +25°C: ~60 minutes
  • At +40°C: ~30 minutes

APPLICATION INFORMATION

• Layer Thickness:
  • Minimum grout depth: 20 mm
  • Maximum grout depth: 80 mm
• Ambient Temperature:
  • Minimum: +20°C / Maximum: +40°C
• Substrate Temperature:
  • Minimum: +15°C / Maximum: +40°C
• Substrate Moisture Content:
  • ≤ 4% for optimal adhesion
• Dew Point: Ensure the substrate temperature is at least 3°C above the dew point to avoid condensation during application.
• Mixing Method:
  • Mix the components using a mechanical mixer for consistent results. Add the appropriate amount of water if necessary to achieve the desired consistency.
• Curing Time: Full curing occurs within 7 days at +25°C. Cooler temperatures may extend curing times.
