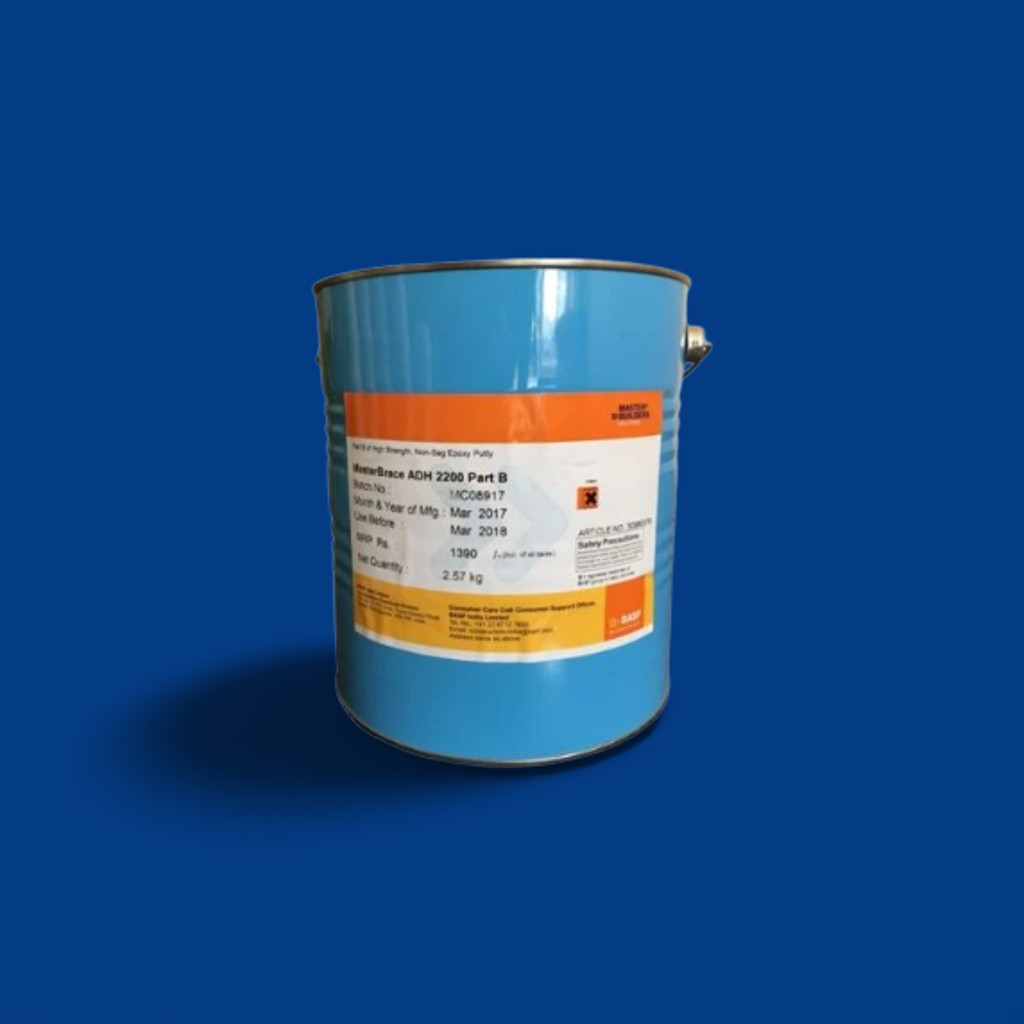

MasterBrace® ADH 2200 | MCT CHEMICALS | MASTER BUILDER SOLUTIONS

MasterBrace® ADH 2200 is a two-component, non-slumping epoxy bedding and adhesive compound. It is a fast-curing material, filled with fine aggregates, ideal for a range of bedding, gap-filling, and concrete repair applications. This thick, easily workable compound can be applied using a trowel, spatula, or knife. Once cured, it exhibits high mechanical properties typical of epoxy, and it resists oils, greases, petroleum, salts, many acids, alkalis, and common corrosive media. The product does not shrink during curing and can be used in temperatures ranging from below freezing to 60°C. Its impact resistance and mechanical strength surpass that of concrete.

Compare
Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

PRIMARY USES

  • Surface repair of fine cracks and spalls
  • Gap filling, grouting, bedding fixtures, and fixing dowel bars
  • Repairing arrises without the need for formwork
  • Any application requiring a thixotropic epoxy mortar

TYPICAL APPLICATIONS

  • Bedding steel bridge bearings or bridge beams
  • Repairing surface defects or honeycombed concrete in horizontal, vertical, or overhead surfaces
  • Fixing slip bricks to concrete
  • Securing bolts into walls
  • Anchoring dowel bars
  • Acting as a gap-filling adhesive
  • Filling bolt pockets
  • Bedding tiles
  • Repairing in-situ concrete posts
  • Fixing surface ports for crack injection

ADVANTAGES

  • High strength
  • Non-slumping consistency
  • Strong adhesion
  • Impact resistance
  • Good chemical resistance
  • Non-shrinking
  • Epoxy-based formula
  • Smooth finish when troweled
  • Easy to apply
  • Supplied in pre-measured units
  • No need for bonding agents or primers

PACKAGING
MasterBrace® ADH 2200 is available in 5 kg units.

COMPOSITION
Two-component epoxy-based mortar with selected fine aggregates.

TYPICAL PROPERTIES

  • Color: Cement grey
  • Mixed Density: 1750 kg/m³ at 25°C
  • Flashpoint: Not applicable
  • Compressive Strength: >60 N/mm² at 7 days (ASTM D695)
  • Bond Strength: Higher than that of concrete
  • Pot Life: At 25°C: 1 hour 45 minutes, at 40°C: 45 minutes
  • Tack-Free Time: At 25°C: 7 hours, at 40°C: 2 hours
  • Full Cure: At 25°C: 5 days, at 40°C: 3 days

STANDARDS
ASTM C881: Type I and IV, Grade 3, Class B and C

CHEMICAL RESISTANCE
MasterBrace® ADH 2200 offers excellent resistance to various substances, including: most aqueous systems, sewage, urine, fresh and seawater, diluted and concentrated alkalis and acids, sulfur gases, mineral oils, vegetable and animal oils and fats, ammonia, and formaldehyde.

APPLICATION PROCEDURE
Preparation: Clean all surfaces by removing loose particles, laitance, dust, grease, and other contaminants before applying MasterBrace® ADH 2200.
